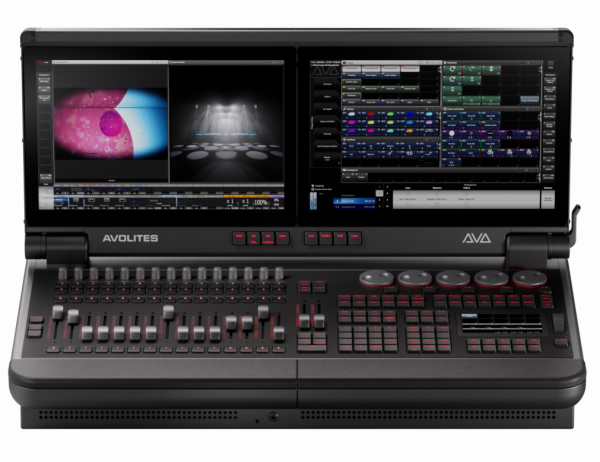

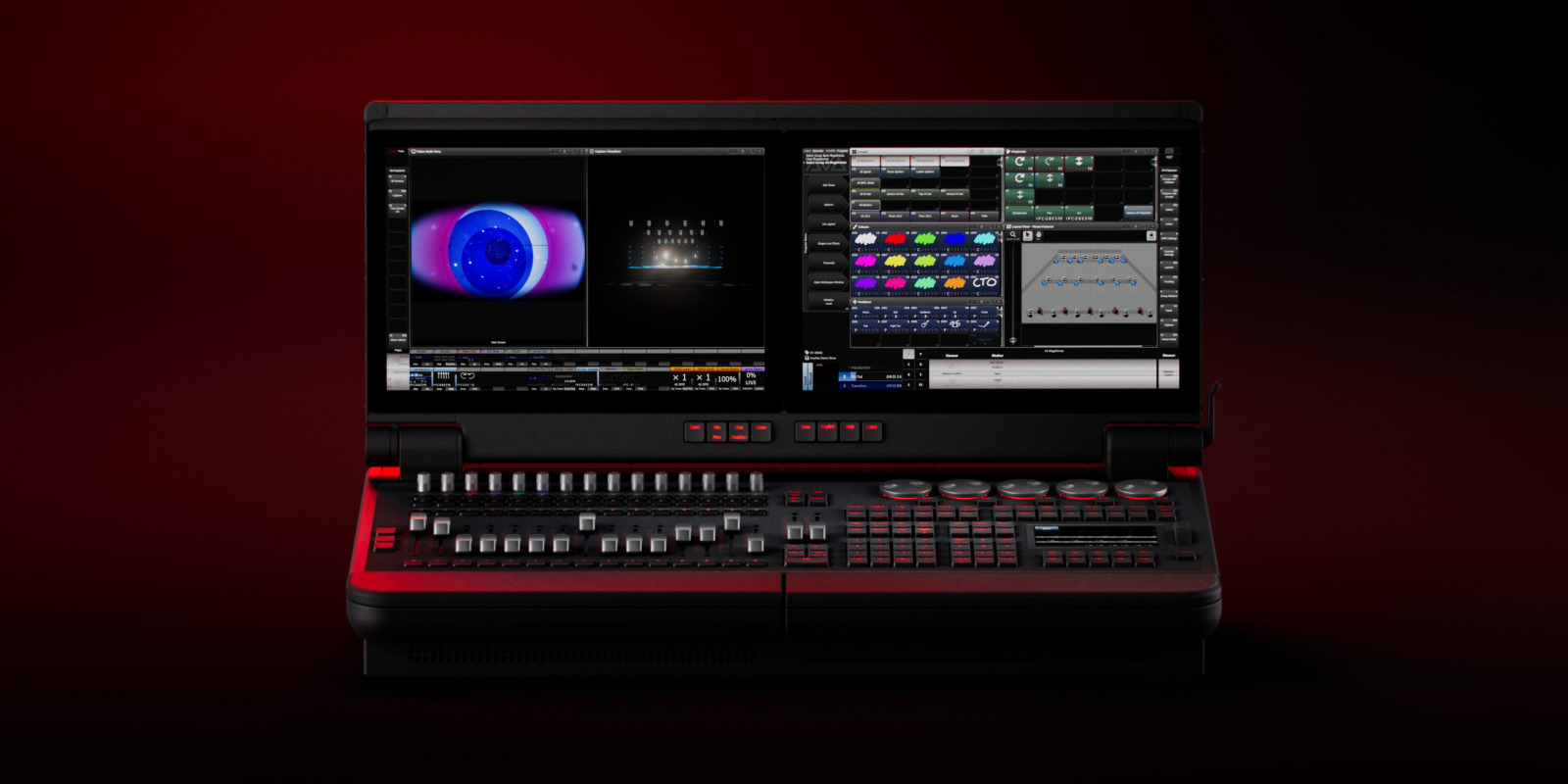

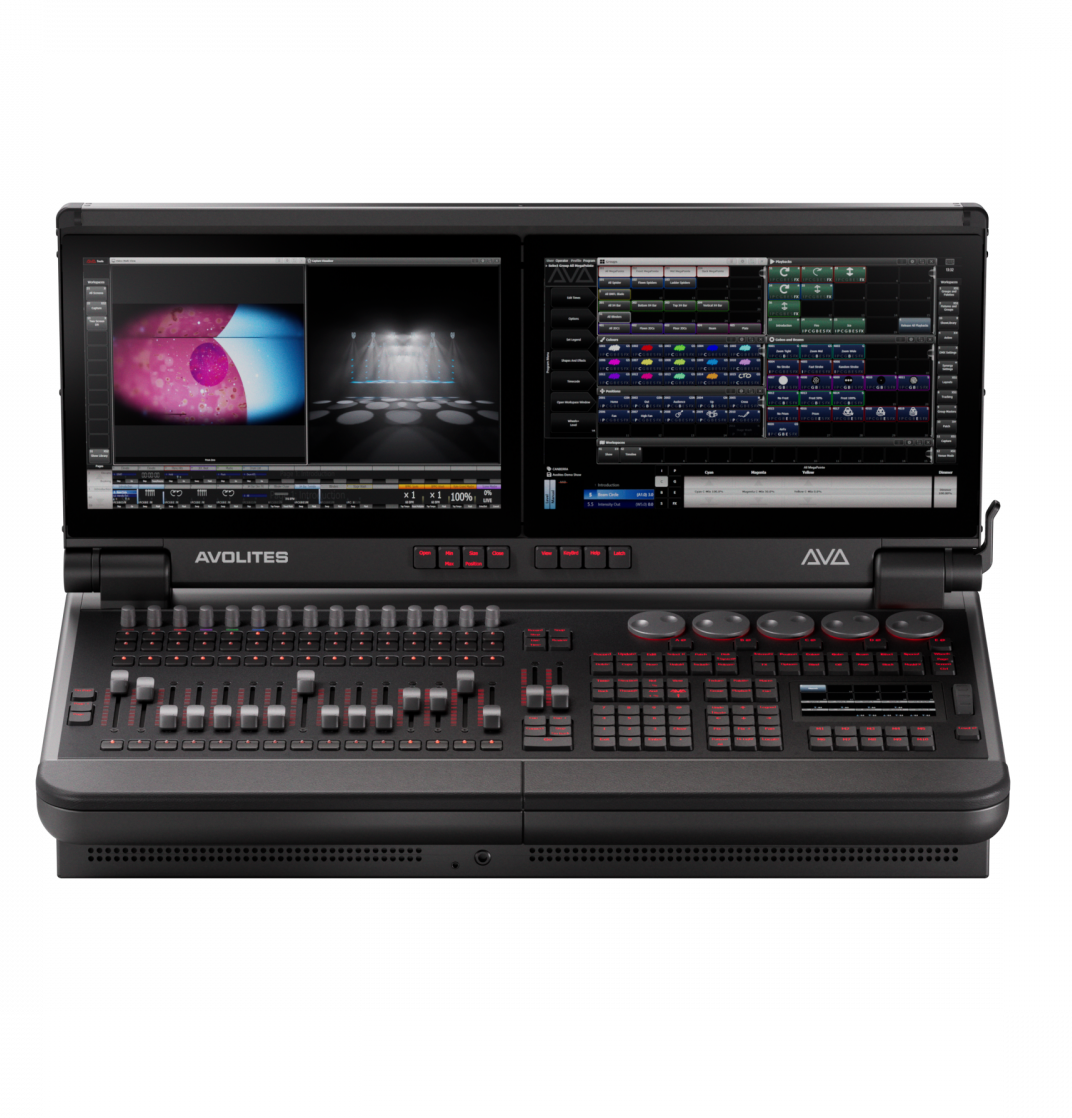

New D7-215 the ultimate travel and performance console
The latest in the Diamond collection of consoles
- 15 motor playback faders, 15 encoder playbacks
- 2 x 14” capacitive touchscreens with adjustable brightness
- Dual, motorised, touch-sensitive, master cue-list and sequence faders with 9 control buttons
- Fits into a custom Peli-Air Case 1615
Diamond 7-215
Current Capabilities
- Universes
- Fibre Optic output
- Faders
Generative, animation-based pixel mapping
Quicksketch labelling for ultimate personalisation
Powerful multi-user networking with any Titan console
Create huge effects in seconds with Key Frame Shapes
Feature-packed cue lists supporting macros, tracking, autoloads, timecode and more
Expand DMX channel capacity with Titan Net Processors
Synergy-ready. Add any Ai product to unlock seamless video integration
Downloads
| Name | Description | Last Modified | Size | Download |
|---|---|---|---|---|
| NameDiamond 7-215 Data Sheet | Description | Last Modified | Size | Download Download |
Technical Spec

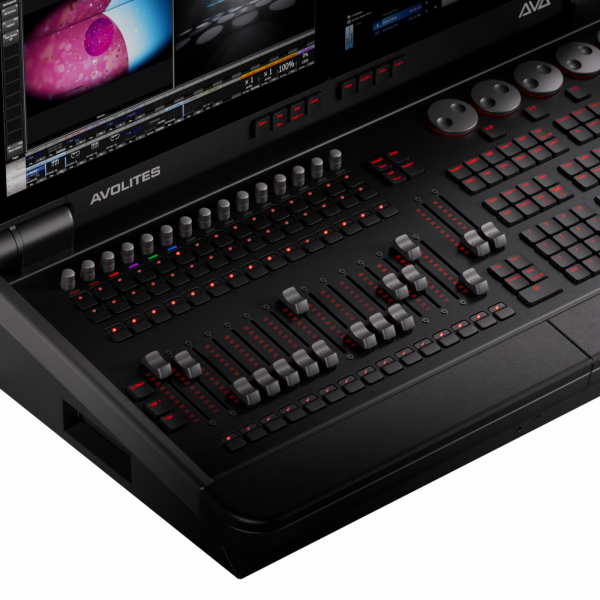

15 motorised touch-sensitive faders, with designer fader cap and RGB fader indicator
15 ultra high resolution touch sensitive playback encoders with push function, and RGB encoder indicator

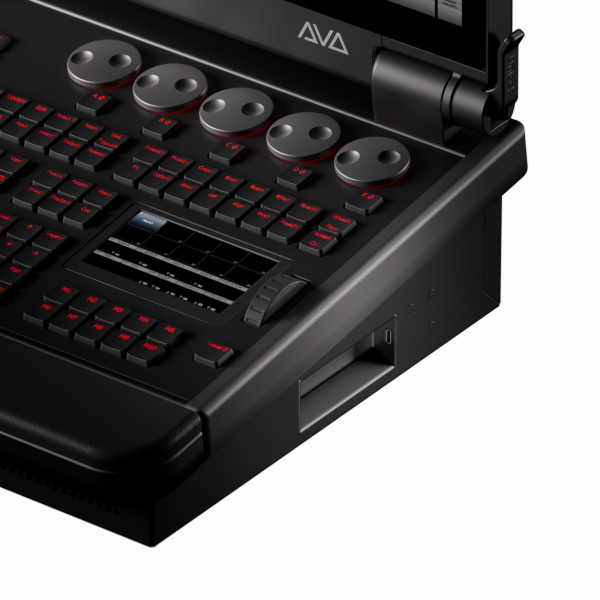

5 x custom RGB backlit optical attribute encoders
Programming buttons all RGB backlit, short travel Cherry® MX Low Profile switches
2 x 14” 850 nits 1920x1200 capacitive touch main screens with adjustable brightness, mounted on folding panel
Dedicated level wheel and onscreen level indication

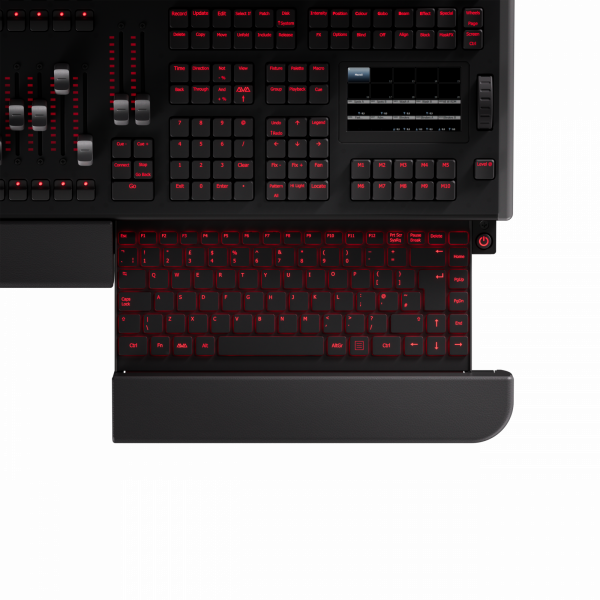

Full custom backlit QWERTY keyboard in drawer, keys identical to program panel
LED desk reading light in panel above screens and over rear panel

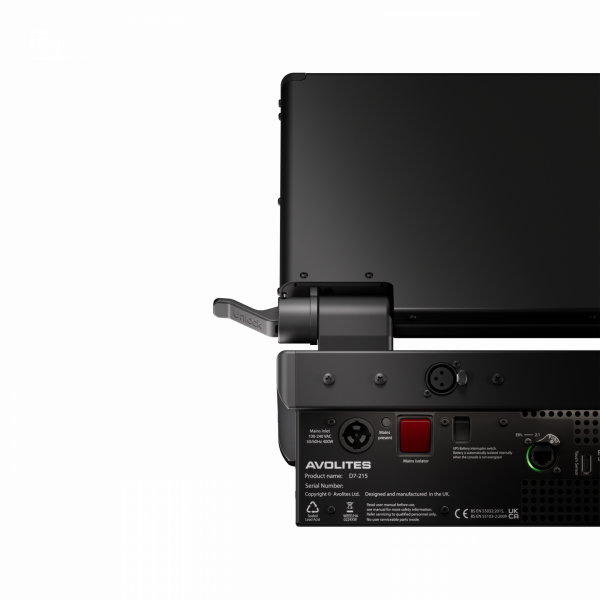

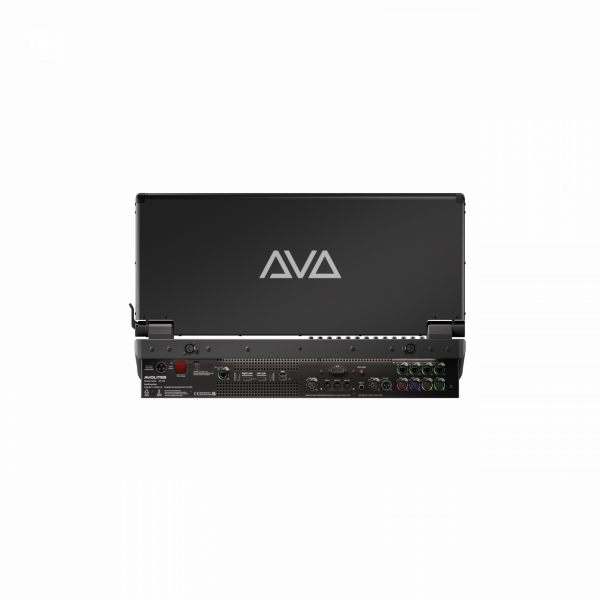

4 x isolated DMX outputs via 5 pin XLR connectors
4 x Neutrik XLR on primary network port, 1 x Neutrik XLR on secondary network port, internally switched and managed
MIDI in, Loop & Out port in DIN 5, SMTP in/loop out, Foot trigger input, Audio trigger Input,
SMPTE RTU Timecode in and Loop out via 3 pin XLR with transformer isolation
GPIO with 4 inputs and 4 outputs on 15 Pin D sub connector
Supports 2 x additional external DisplayPort 1920*1080 touchscreens
Weights and Dimensions
UNIT DIMENSIONS
(W X D X H)
- 8 x 36 x 42 cm (Screens unfolded)
- 68 x 36 x 18 cm (Screens folded)
WEIGHT:
- 17 KG / 37 LBS
